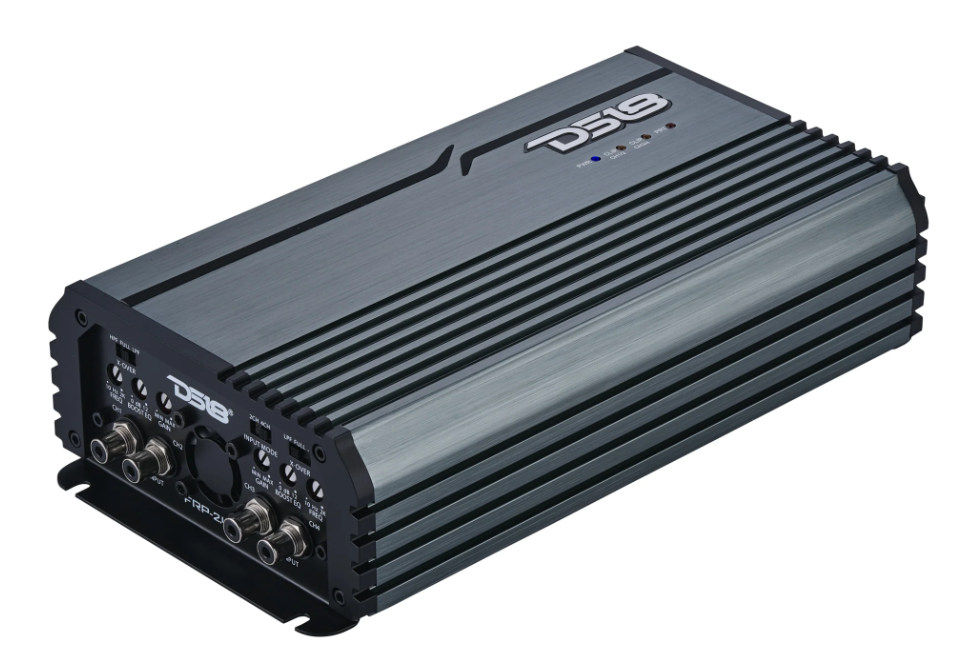

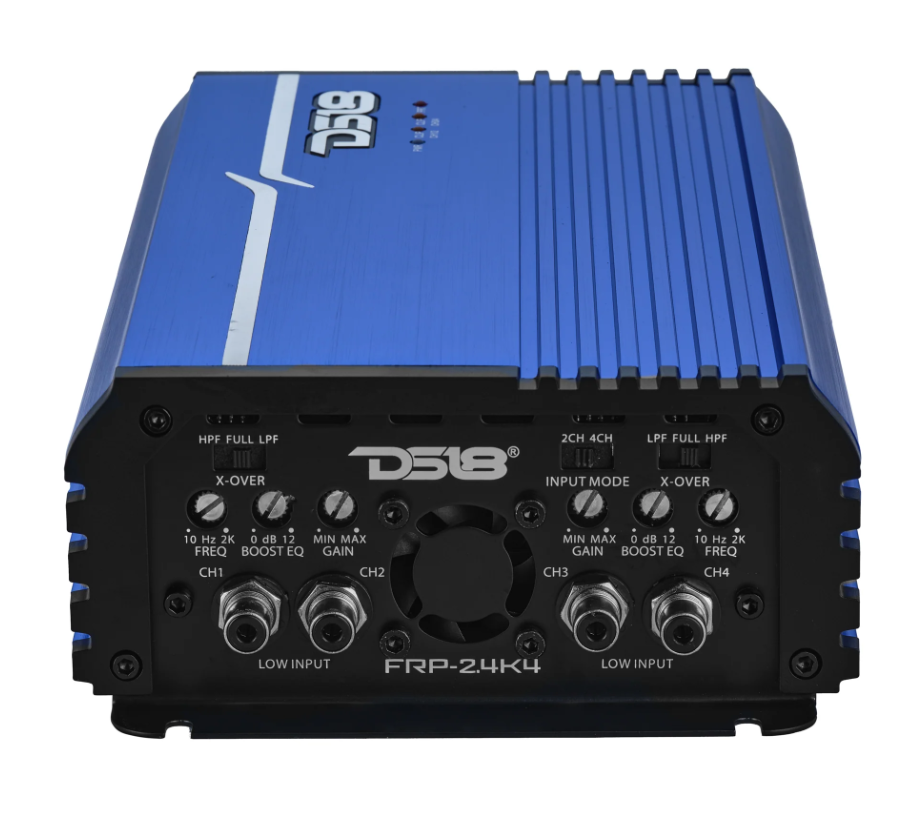

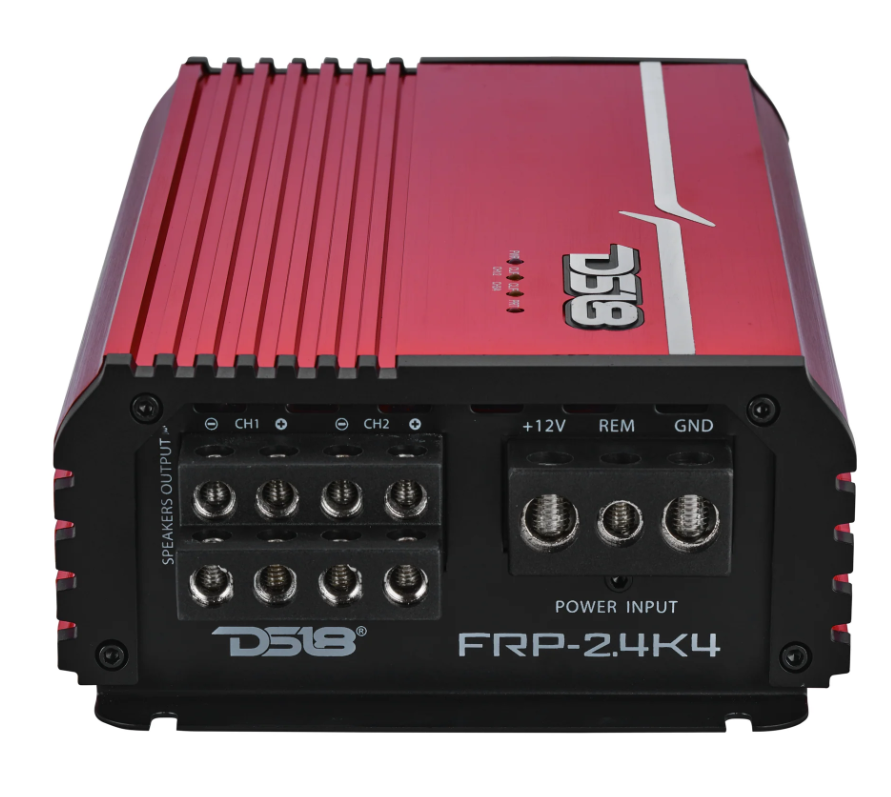

DS18 FRP-2.4K4 Class D Full Range 2400W RMS 4-channel Amplifier

Power

RMS Power @ 4 ohms
4 x 250W
RMS Power @ 2 ohms
4 x 400W
RMS Power @ 1 ohm
4 x 600W
RMS Power @ 4 ohm Bridge
2 x 750W
RMS Power @ 2 ohm Bridge
2 x 1000W

Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
97%
Damping Factor
90
Input Impedance
10KΩ
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-6V
Selectable X-Over
Yes, HPF/FULL/LPF
X-Over Filter Range
10Hz-2KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz

Features

Amplifier Class
Digital
Amplifier Type
Full-Range Multi-Channel
Number of Channels
4CH
Minimum Impedance
1ohm St / 2ohm Bridge
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
0GA
Fuse Size (Recommended)
240A
Cooling Fan
Yes (Smart Cooling x 1)
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Tiffany RCA Terminal
Yes
Metal Knobs with Click Steps
Yes
Input Selector
Yes (2ch/4ch)

Measurement

Overall Length
10.3" / 262mm
Overall Wide
5.5" / 140mm
Overall Height
2.4" / 63.5mm
Heatsink Length
9" / 230mm
