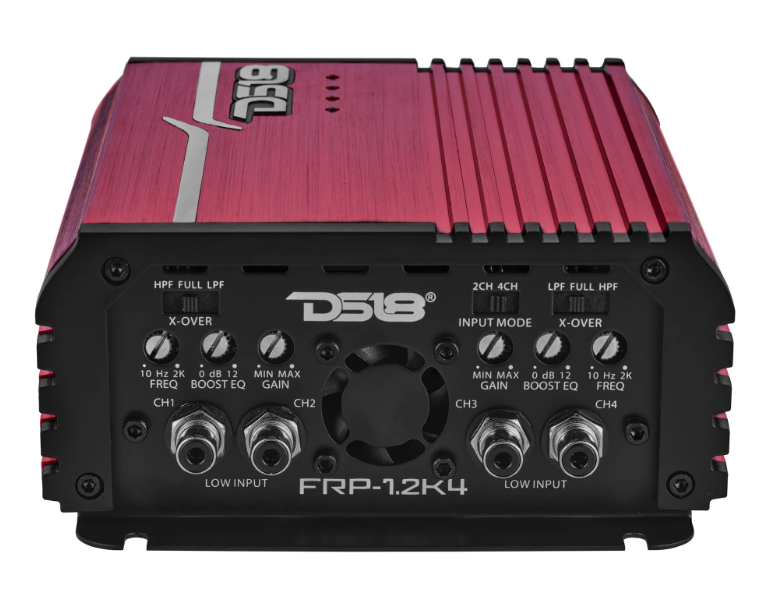

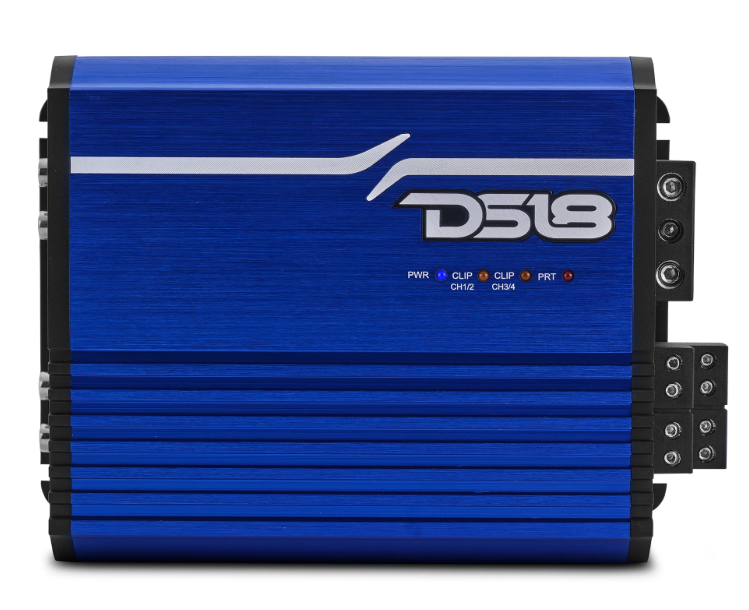

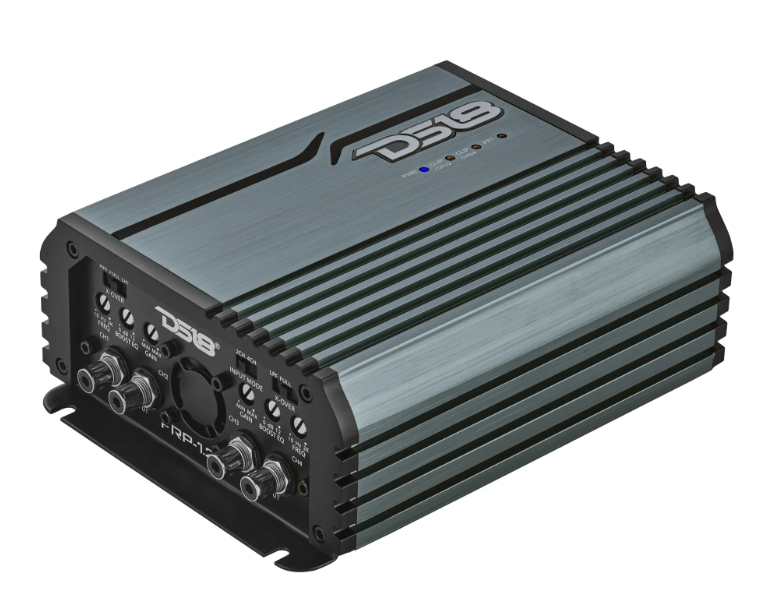

DS18 FRP-1.2K4 Class D Full Range 1200W RMS 4-channel Amplifier

Power

RMS Power @ 4 ohms
4 x 120W
RMS Power @ 2 ohms
4 x 200W
RMS Power @ 1 ohm
4 x 300W
RMS Power @ 4 ohm Bridge
2 x 350W
RMS Power @ 2 ohm Bridge
2 x 500W

Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
97%
Damping Factor
90
Input Impedance
10KΩ
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-6V
High Level Input
No
Selectable X-Over
Yes, HPF/FULL/LPF
X-Over Filter Range
10Hz-2KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No

Features

Amplifier Class
Digital
Amplifier Type
Full-Range Multi-Channel
Number of Channels
4CH
Minimum Impedance
1ohm St / 2ohm Bridge
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4GA
Fuse Size (Recommended)
140A
Cooling Fan
Yes (Smart Cooling x 1)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Input Selector
Yes (2ch/4ch)
Remote Level Control with Clip Indicator
No
Remote Level Control with Clip Indicator and Voltmeter
No

Measurement

Overall Length
7.2" / 183mm
Overall Width
5.5" / 140mm
Overall Height
2.4" / 63.5mm
Heatsink Length
6" / 152mm
