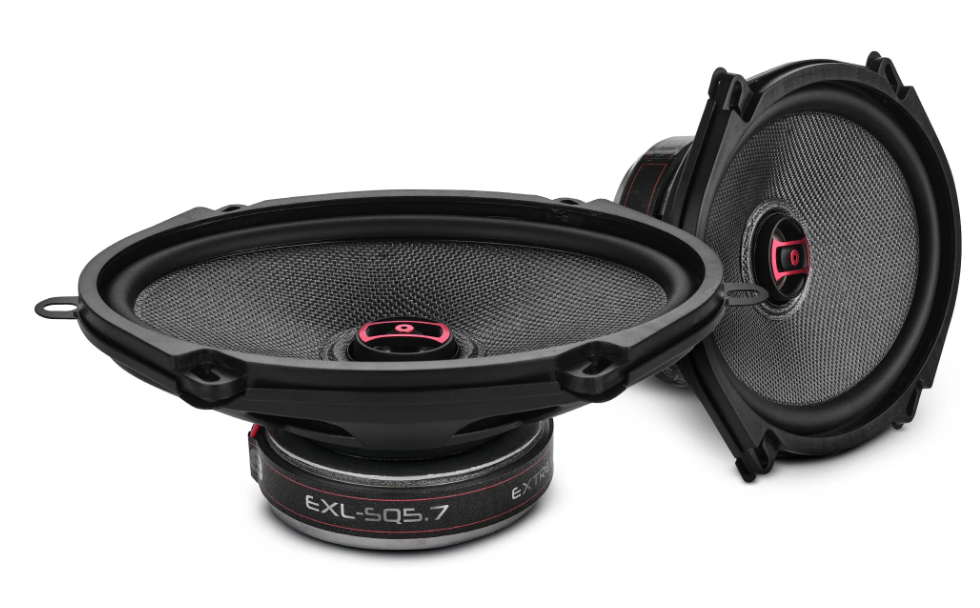

DS18 EXL-SQ5.7 5x7" / 6x8" 2-Way 3 Ohm Coaxial Speakers

Specifications

SKU
EXL-SQ5.7
Nominal Diameter
5x7" / 127x177.8mm
Nominal Impedance
3 ohm
RMS Power Handling
120W
MAX Power Handling
400W
Sensitivity (1w/1m)
90 dB
Frequency Response
60Hz - 22KHz
Recommended HI Pass Crossover
80Hz
Number of ways
2-way
Pair or Single
Pair
Grill Included
No

Woofer Specifications

Voice Coil Diameter
1.3" / 33mm
Voice Coil Former Material
ASV
Winding Material
CCAW
Cone Material
Glass Fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium
Magnet Weight
13.5 Oz

Thiele & Small Parameters

Equivalent Volume
14.11L / 0.498ft3
Free Air Resonance
78Hz
Mechanical Factor
3.219
Electrical Factor
1.466
Total Factor
1.144
DC Resistance
2.8 ohm

Tweeter Specifications

Nominal Diameter
1.14? / 29mm
Voice Coil Diameter
0.8" / 20.3mm
Diaphragm Material
PEI Dome
Magnet Material
Neodymium

Speaker Measurement

Overall Diameter
5.5x7.5" / 139x190mm
Overall Depth
2.87" / 73mm
Front Mount Baffle Cutout
5"x7.1" / 127x181mm
Mounting Depth
2.5" / 63.4mm
Motor Diameter
3.54" / 90mm
