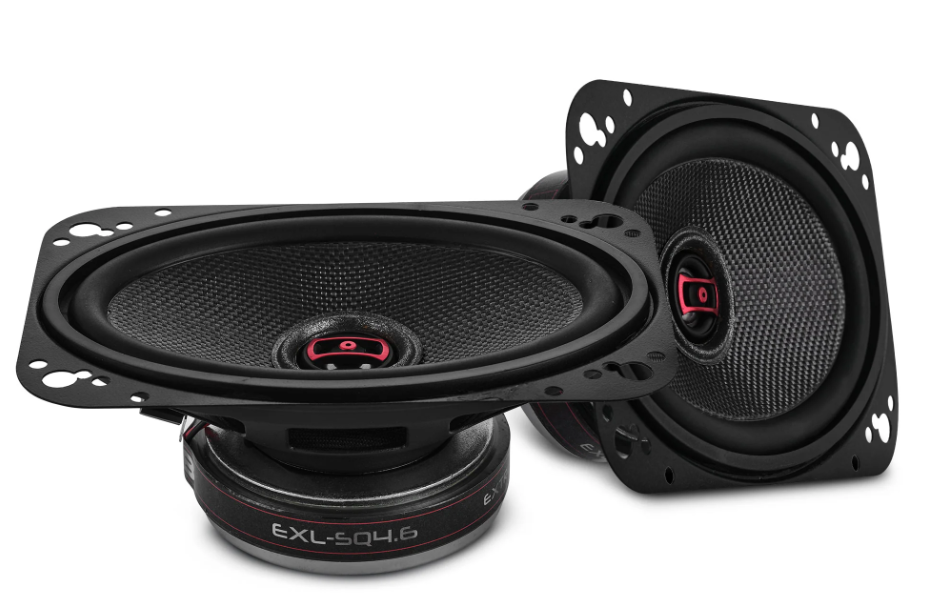

DS18 EXL-SQ4.6 4x6" 2-Way 3 Ohm Coaxial Speakers

General Specifications

Nominal Diameter
4x6" / 101.6x152.4mm
Nominal Impedance
3 ohm
RMS Power Handling
60W
MAX Power Handling
260W
Sensitivity (1w/1m)
87 dB
Frequency Response
80Hz - 22KHz
Recommended HI Pass Crossover
100Hz
Number of ways
2-way
Pair or Single
Pair
Grill Included
No

Woofer Specifications

Voice Coil Diameter
1? / 25.5mm
Voice Coil Former Material
ASV
Winding Material
Copper
Cone Material
Glass Fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium
Magnet Weight
9 Oz

Thiele & Small Parameters

Equivalent Volume
3.6L / 0.12ft3
Free Air Resonance
96Hz
Mechanical Factor
4.964
Electrical Factor
1.136
Total Factor
0.924
DC Resistance
2.8 ohm

Tweeter Specifications

Nominal Diameter
0.8? / 20.3mm
Voice Coil Diameter
0.5" / 13mm
Diaphragm Material
Mylar
Magnet Material
Neodymium

Speaker Measurement

Overall Diameter
4x6" / 102x155mm
Overall Depth
2.37" / 60.4mm
Front Mount Baffle Cutout
3.5x5.5" / 91x140mm
Mounting Depth
2.15" / 54.8mm
Motor Diameter
3.14" / 80mm
