DS18

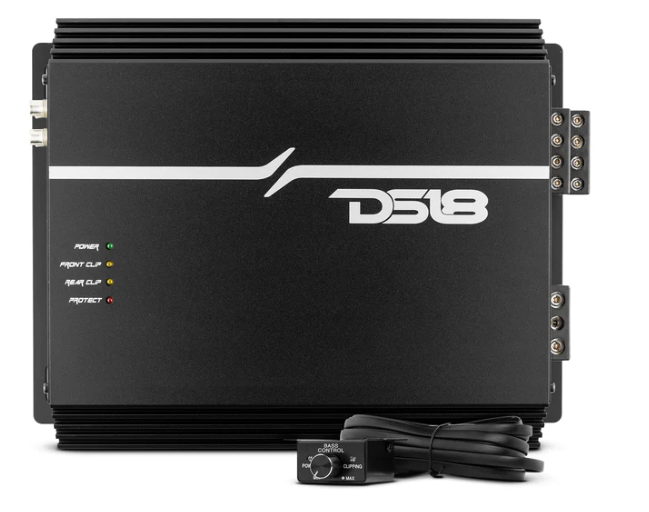

DS18 EXL-P800X4 Class AB 4-Channel Amplifier
DS18 EXL-P800X4 Class AB 4-Channel Amplifier
Regular price
$249.95
Regular price
Sale price
$249.95
Unit price
/
per
Shipping calculated at checkout.
SKU:EXL-P800X4
Couldn't load pickup availability
EXL-P800X4 Amplifier
| RMS Power @ 4 Ohm | 150W x 4CH |
| RMS Power @ 2 Ohm | 200W x 4CH |
| RMS Power @ 4 Ohm Bridged | 400W x 2CH |
| Frequency Response | 20Hz-20KHz |
| Signal/Noise Ratio | >98dB |
| Efficiency @ 4 Ohm | >63% |
| Damping Factor | 140 |
| THD % | <0.10% |
| Low Level Input Range | 200MV-6V |
| Selectable X-Over | Yes, HPF/FULL/LPF |
| X-Over Filter Range | 50Hz-2KHz |
| Bass Boost Range | 0-+9dB |
| Bass Boost Frequency | 30Hz-60Hz |
| Infrasonic Filter | No |
| Phase Selector | 0-180 |
| Class | AB (Analog) |
| Amplifier Type | Stereo Full - Range |
| Channels | 4 CH |
| Minimum Impedance | 2 Ohm/CH (4 Ohm Bridge) |
| Led Indicator | PWR / CLIP / PROTECT |
| Power Input Size | 4 AWG |
| Fuse Rating | 120A |
| Remote Level Control | Yes - Dash Mount |
| Cooling Fan | Yes |
| Thermal Protection | Yes > 97°C / 206°F |
| Over-Load Protection | Yes |
| Dc Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes >15.5V |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum |
| Dimensions LxWxH (Inches)(mm) | 11.5 x 8.77 x 2.67” / 292 x 223 x 68 mm |
| Heatsink Length | 9.84" / 250mm |
