DS18
DS18 EXL-P4000X1 Class D 1-Channel Amplifier
DS18 EXL-P4000X1 Class D 1-Channel Amplifier
SKU:EXL-P4000X1D

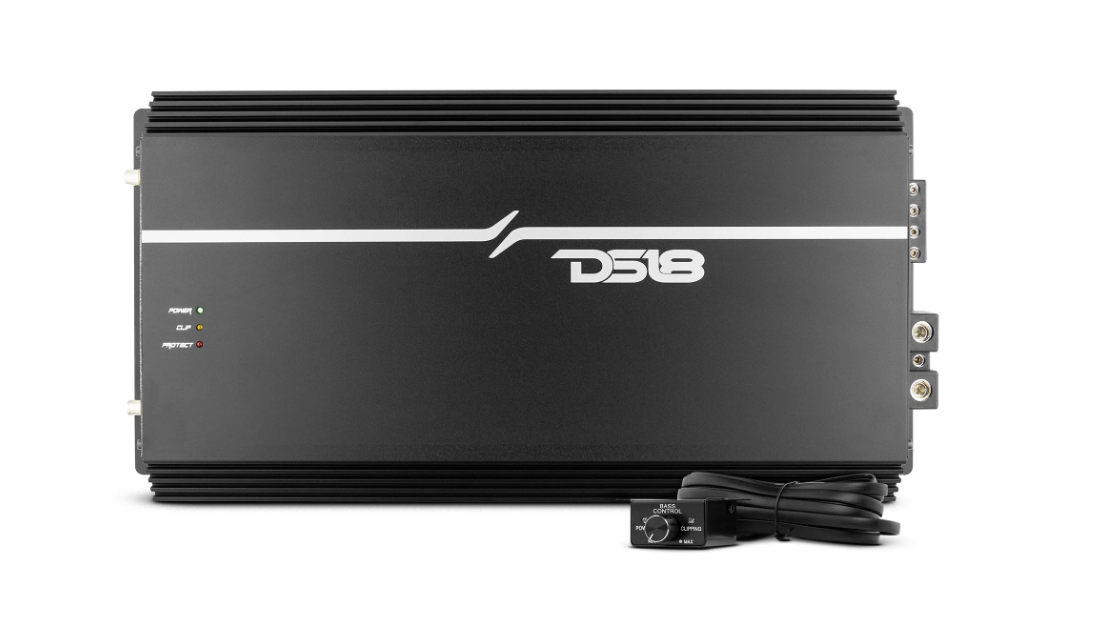

EXL-P4000X1D Amplifier
SPECS
SKU
EXL-P4000X1D
RMS Power @ 4 Ohm
1600W x 1 CH
RMS Power @ 2 Ohm
2600W x 1 CH
RMS Power @ 1 Ohm
4000W x 1 CH
Frequency Response
15Hz-250Hz
Signal/Noise Ratio
>98dB
Efficiency@4 0hm
>87%
Damping Factor
200
THD %
<0.02%
Low Level Input Range
200MV-6V
Selectable X-Over
LPF Fixed
SPECS
X-Over Filter Range
35Hz - 250Hz
Bass Boost Range
0-+9dB
Bass Boost Frequency
30Hz - 60Hz
Infrasonic Filter
10Hz - 30Hz
Phase Selector
0-180
Class
D (Digital)
Amplifier Type
Monoblock Subwoofer
Channels
1CH
Minimum Impedance
1 Ohm
Led Indicator
PWR / CLIP / PROTECT
Power Input Size
0 AWG
SPECS
Fuse Rating
450 A
Remote Level Control
Yes - Dash Mount
Cooling Fan
No
Thermal Protection
Yes >75°C / 167°F
Over-Load Protection
Yes
Dc Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes >15.5V
Clipping Protection
Yes
Body Color / Finish
Black Aluminum
Dimensions L x W x H (Inches)
17.4 x 8.77 x 2.67”
