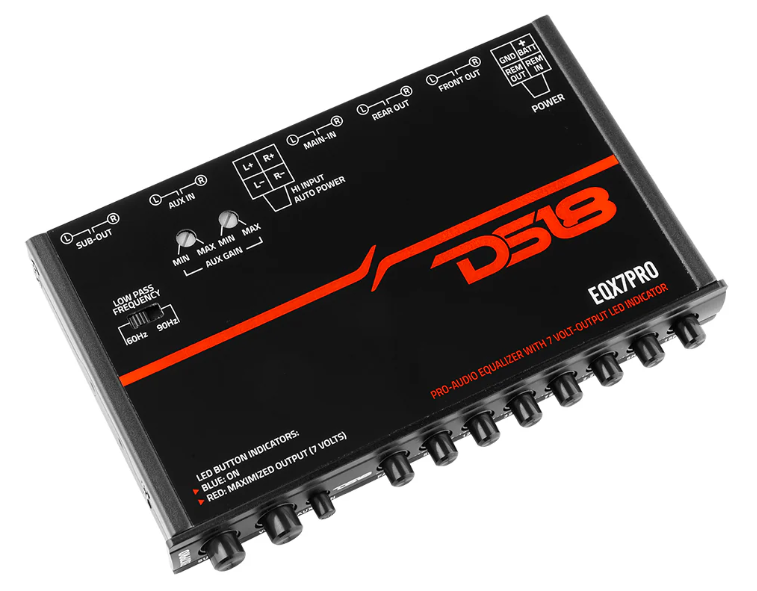

DS18 EQX7PRO 7 Band Equalizer with High Level Input, Auto Turn On, High Volt LED

SPECS

Type of Equalizer
Graphic
Number of bands
7
Frequency Point HZ
50, 125, 320, 750, 2.2k, 6k, 16k
Boost/Cut
12dB (15dB Subwoofer Frequency)

Crossover Section

Passive Crossover Ways / Type
1 (LPF) (Subwoofer Ch)
Frequency Crossover point
60/120Hz Selectable
Cut-Off Slope
12dB/Oct

Audio Specifications

S/N Ratio
100dB
THD
0.005%
Input Sensitivity
50mV-3V
Input Impedance
20Kohm
Output Voltage
8V
Output Impedance
2Kohm
Head Room
20dB
Stereo Separation
82dB @ 1Khz
Frequency Response
10Hz-30Khz

General Features

Operating Voltage
11-15V
Subwoofer Output
Yes (9V)
Audio Controls
Subwoofer Level, Master Volume, Fader
Audio Inputs
Main (RCA), Aux(RCA)
RCA Type
Gold-plated
Housing Material
Metal / Aluminum
Adjustments
Aux Input Gain
Extra Features
Blue Backlit with Red 7V output indicator
Hi-Level Speaker Input
Yes
Auto Turn-on
Yes (Hi-Level input)
Remote Turn-on Input/Output
Yes Input and Output
Color / Finish
Satin Black

Measurements

Overall Length
7" / 178mm
Overall Depth
4.4" / 112mm
Overall Height
1.18" / 30mm
Gross Single Unit Weight (lb)
1.85
Single Unit Box Dimensions W x L x H (Inches)
9 x 6.25 x 1.75
