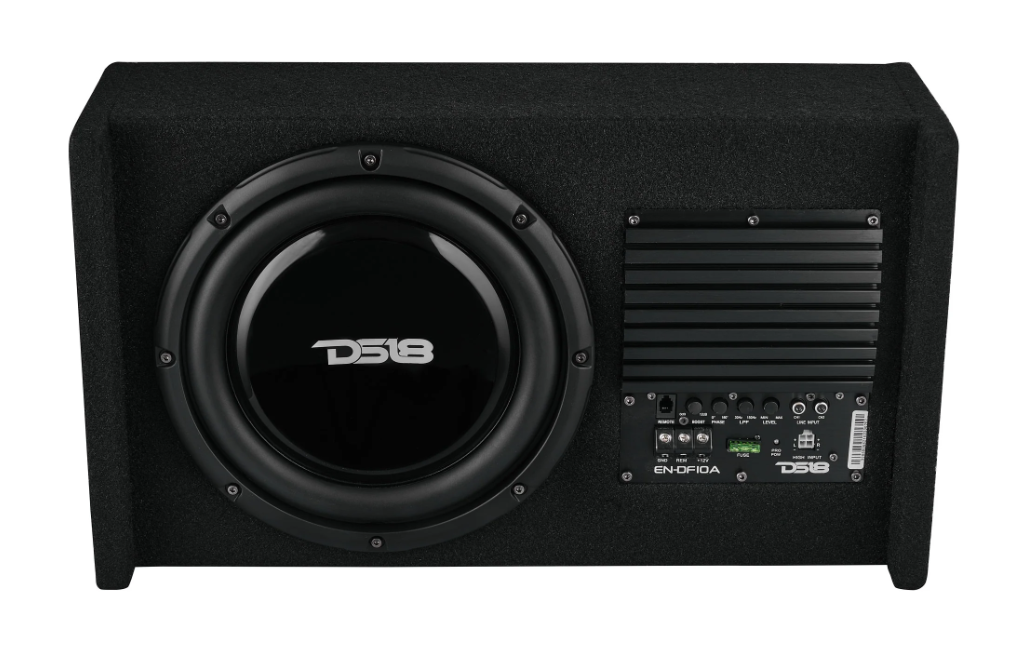

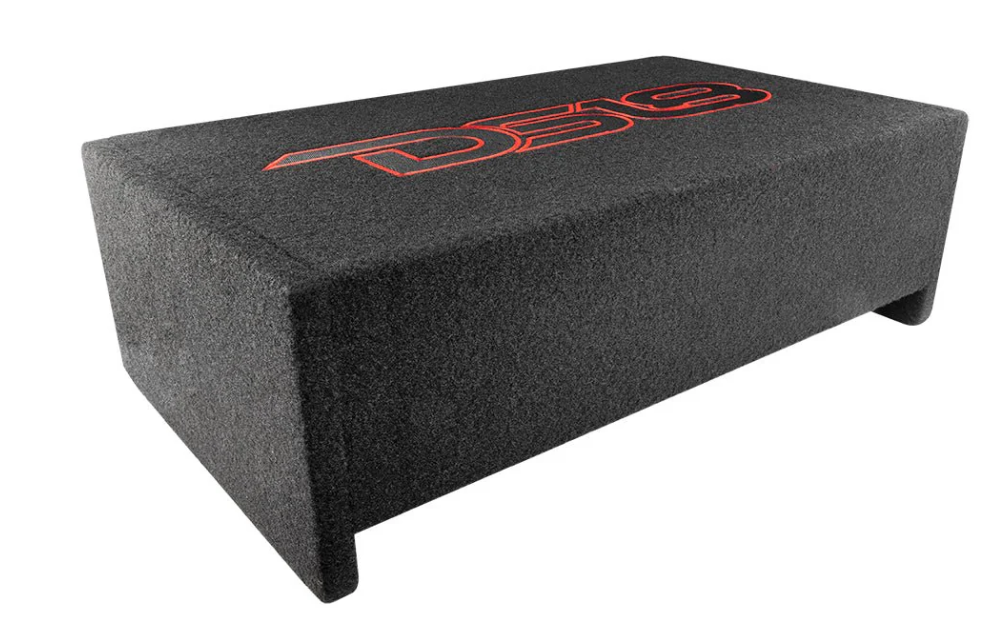

DS18 EN-DF10A Amplified Loaded Shallow Downfire Box with 10" Sub

SPECS

SKU
EN-DF10A
Speaker Type / Size
10" Active Subwoofer
Total Impedance
2 Ohm
Total RMS Power Handling
250W (14.4V)
Total MAX Power Handling
500W
Sensitivity (1w/1m)
86dB
Frequency Response
25-250Hz
Recommended Lo Pass Crossover
80Hz

Measurement

Overall Height
11.6" / 295mm
Overall Width
20.27" / 515mm
Overall Depth
6.3" / 160mm
Gross Single Unit Weight
8.9KG

Speaker Specifications

Voice Coil Diameter
1.52" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
Cooper
Cone Material
Injection PP Cone
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
40 Oz

Amplifier Specifications

Amplifier Class
Digital
Amplifier Type
Subwoofer Monoblock
Number of Channels
1
Minimum Impedance
2 Ohm
Signal to Noise Ratio
80dB
Efficiency @ 4ohm
75%
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
200mV-6V
High Level Input
Yes
Auto Turn-On
Yes
Selectable X-Over
LPF Fixed
X-Over Filter Range
30-150Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
80Hz
Infrasonic Filter
No
Phase Selector
0 - 180
Led Indicator
Power / Protection
Power Input Terminal Size
8Ga
Fuse Size
30A
Remote Level Control
Yes, Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (>17Vdc)
Clipping Protection
No

Box Specifications

Internal Volume
12L / 0.42ft3
Load Configuration
Single 2 Ohm
Box Type
10" Down-Firing Sealed
Box Material
MDF (5/8" / 15mm)
Finish Material
Black Carpet
-3Db Dropping Point F3
39Hz
