DS18

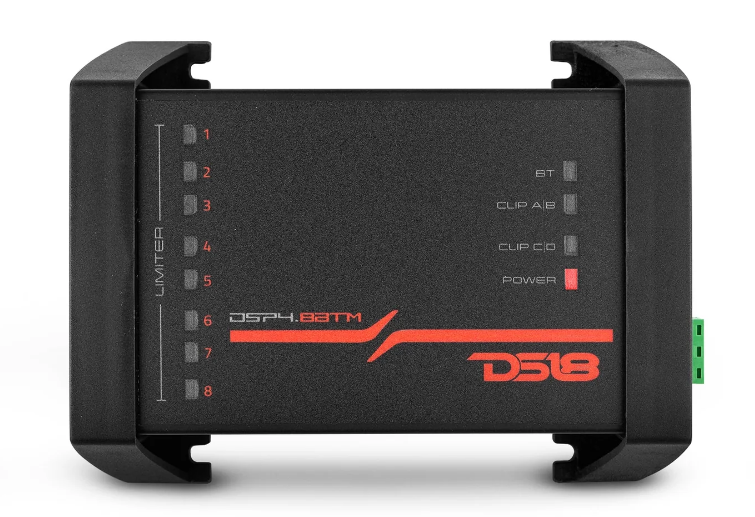

DS18 DSP4.8BTM 4 Channel In to 8 Channel Out DSP with Bluetooth

DS18 DSP4.8BTM 4 Channel In to 8 Channel Out DSP with Bluetooth

$229.95
$229.95
Sale Sold out
Shipping calculated at checkout.

DSP4.8BTM

Highlights

  • Bluetooth connectivity to allow for easy and accessible audio tuning
  • Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
  • 4 Channel RCA inputs
  • 8 Channel RCA outputs
  • Parametric equalizer with 8 independent band per channel
  • Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.
  • Water resistant
Specifications
ROUTING CHANNEL
Routing Options  A / B / C / D / A+B / A+C / B+C
GAIN  GAIN / GANANCIA
General Gain  -53 to 0dB
Channel Gain  -33 to +9dB
FREQUENCY CUTS (CROSSOVER)
Cutoff Frequency  20Hz to 20KHz
Types of Cuts  Linkwitz-Riley / Butter worth / Bessel
Attenuations  6 / 12 / 18 / 24 / 36 / 48dB/OCT
INPUT EQUALIZER (EQ IN)
Equalization Bands  15 Bands
Gain  -12 to +12dB
CHANNEL EQUALIZER (EQ CHANNEL)
Equalization Bands  8 Parametric per Channel
Gain  -12 to +12dB
Q Factor  0.6 to 9.9
TIME ALIGNMENT (DELAY)
Time  0 to 18,95ms
Distance  0 to 6500mm
LIMITER
Threshold  -54 to +6dB
Attack  1 to 200ms
Release  1 to 988ms
POLARITY INVERSION (PHASE)
Phase  0 or 180º
MEMORIES (PRESETS)
Memories  3 - 100% Configurable
INPUT A/B/C/D
Input Channels  4
Type  Electronically Symmetrical
Connectors  RCA
Max Input Level  4,00Vrms (+14dBu)
Input Impedance  100KΩ
OUTPUT
Output Channels  8
Connectors  RCA
Type  Electronically Symmetrical
Max Input Level  3,50Vrms (+13dBu)
Output Impedance  100Ω
DSP
Frequency Response  10Hz to 24KHz (-1dB)
THD+N <0,01%
Signal Latency  <0,6ms
Bit Rate  32Bits
Sampling Frequency  96KHz
POWER SUPPLY
Voltage DC  10~15VDC
Maximum Consumption  300mA
DIMENSION
Height x Length x Depth  1.6" x 5.6" x 4.25" / 41mm x 142mm x 108mm
Weight  277g / 9.7Oz
