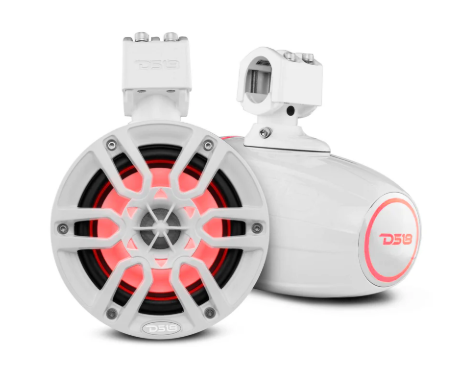

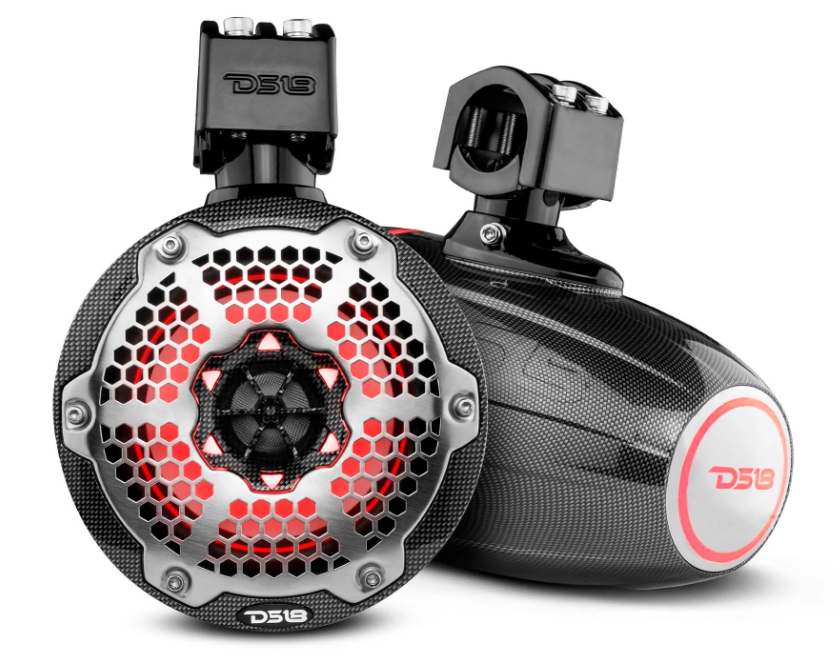

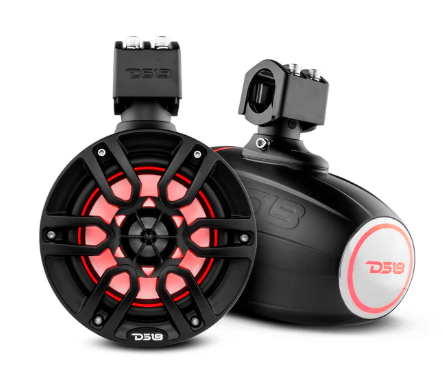

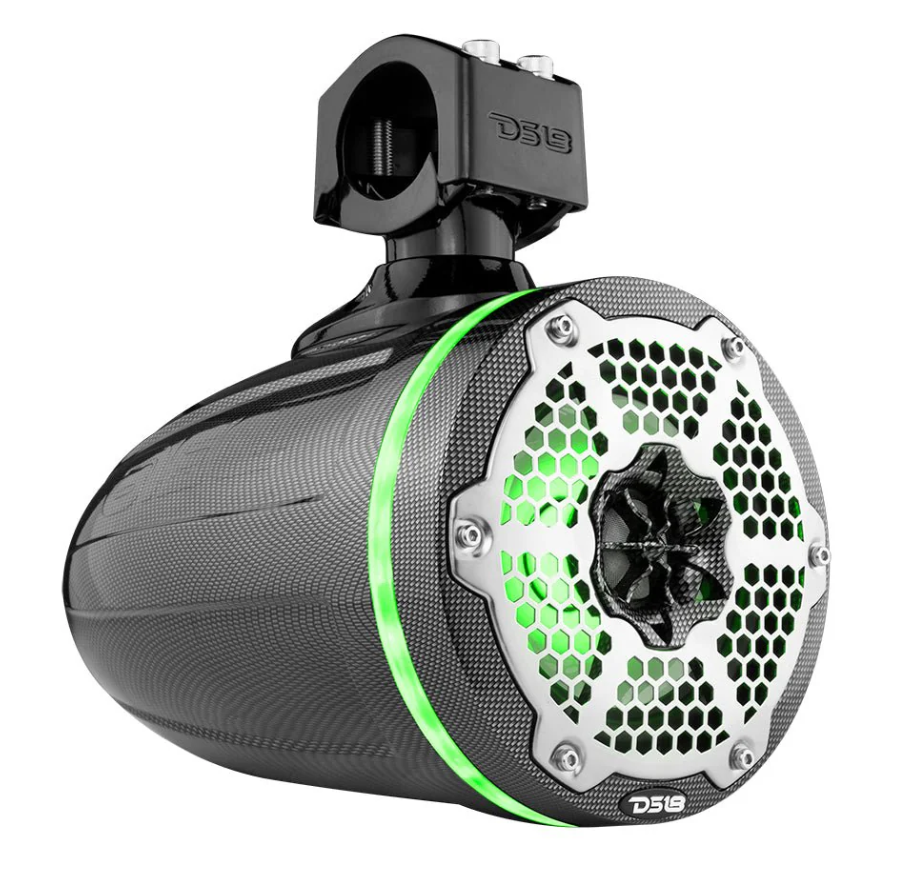

DS18 CF-X6TP / NXL-X6TP Loaded Marine Towers with 6.5" Speakers

SPECS

SKU
CF-X6TP (Carbon Fiber); NXL-X6TP/BK (Black); NXL-X6TP/WH (white)
Nominal Diameter
6.5 inch
Nominal Impedance
4 Ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91 dB
Frequency Response
65 Hz - 23 KHz
Recommended HI Pass Crossover
80Hz

Body / Features

Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
Grill Type
ASA (Injection Grill)
Pair
Yes
Clamps
Die-Cast Adjustable (1"~2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, can be rotated for correct angle display

Woofer Specifications

Voice Coil Diameter
1.2 inch
Cone Material
Waterproof Injection Polypropylene
Surround Material
Butyl
Basket Material
PC Injection Molded Composite
Magnet Material
Ferrite + Reverse Neodymium
Magnet Grade
Y35+N40H
Passive Radiator
No

Tweeter Specifications

Voice Coil Diameter
1 inch
Type
Dome PEI Surround
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6dB/Oct

Thiele & Small Parameters

Equivalent Volume Vas
8.5 L
Excursion (one way) Xmax
4 mm
Free Air Resonance Fs
65 Hz
Total Factor Qts
0.622

Speaker Measurement

Overall Diameter
6.93" / 176.1mm
Overall Depth
11.37" / 288.8mm
Overall Height
10.7" / 271.7mm
