SPECS

SKU
BRO-BASS
Speaker Size
12" / 304mm
Total Impedance
2 Ohms
Total RMS Power Handling
800W
Total MAX Power Handling
1600W
Sensitivity (1w/1m)
90dB
Frequency Response
30Hz-200Hz
Recommended Lo Pass Crossover
80Hz

FEATURES

Ported Box for High Output
Yes
Water Resistant Materials for Light Rain
Yes (IP11)
Exclusive Ford Bronco Design
Yes

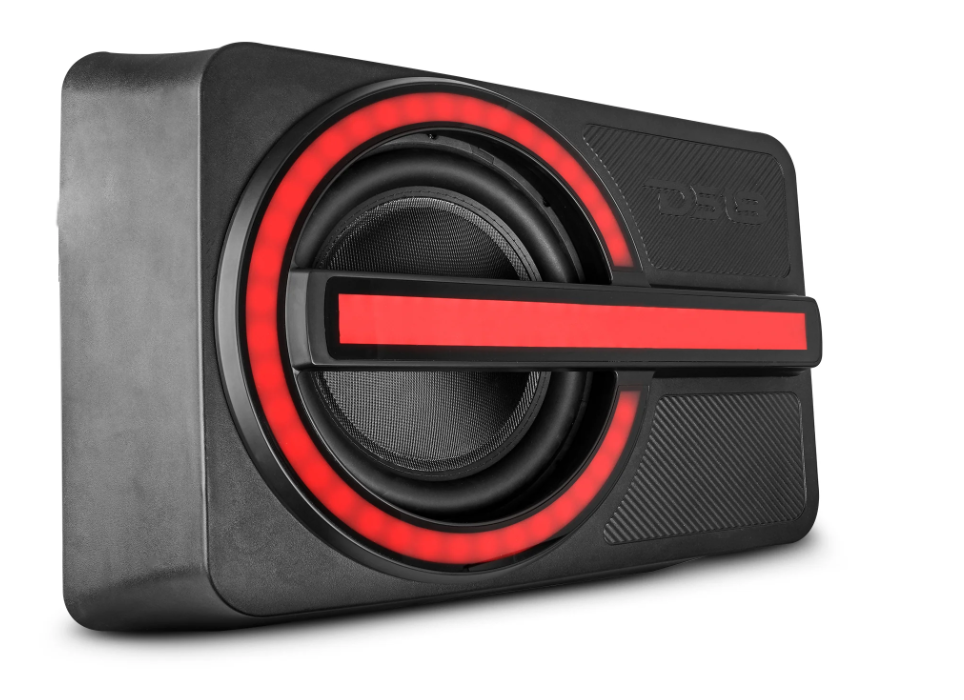

Injected Molded ABS Grill with Built-in RGB LED lighting
Yes
Input Wires for RGB LED and Subwoofer
Yes, 5ft / 1.5m (6 Cores)
Subwoofer Included
Yes, 12" (IXS12.4D)
Installation Hardware Included
Yes, 3 x 6M screws / 3 x 6M rivet nut
Easy to Install

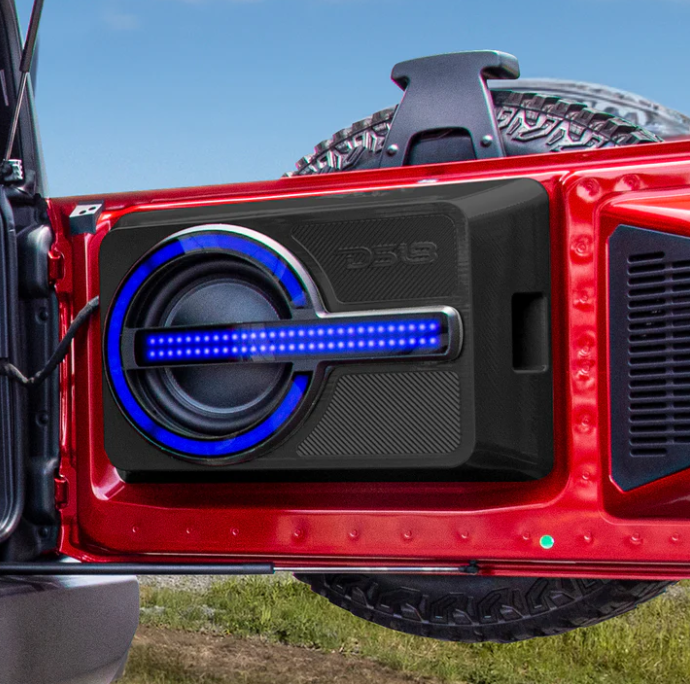

Yes, fits on the tailgate and secures using the factory bolt location

SPEAKER SPECIFICATIONS

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Paper
Dust Cap Material
Fiberglass
Surround Material
Stitched rubber
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
62 Oz

BOX SPECIFICATIONS

Internal Volume
34L / 1.2ft3
Port Tune Fb
45Hz
Load Configuration
Parallel
Box Type
Front Loaded Ported
Box Material
Polyethylene (PE)
Finish Material
Black
-3Db Dropping Point F3
36Hz

MEASUREMENT

Overall Height
17.81" / 452.3mm
Overall Width
27.4" / 695.6mm
Overall Depth
7.4" / 188mm
