DS18

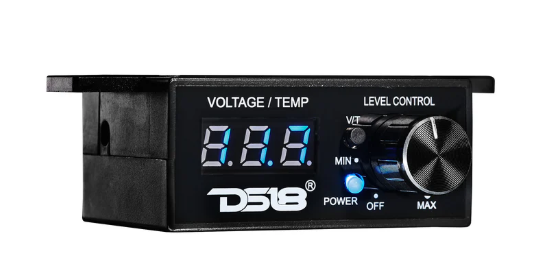

DS18 BKVTR Bass Knob with Voltmeter and Temperature Display
DS18 BKVTR Bass Knob with Voltmeter and Temperature Display
SKU:BKVTR
Couldn't load pickup availability
BKVTR Bass Knob
- Universal Bass Knob , Volt Meter & Temperature Sensor
- Compatible with most Head Units & Amplifiers
- Remote Amp Trigger
- Digital Volt Meter(10V-15.9V)
- Temperature Sensor(0°-125°C/32°-257°F)
- Rotary Push Turn On/Off for Amplifier Remote
SPECS
SKU
BKVTR
Number of Channels
2 (Left/Right)
RCA Type
Regular RCA Wire
Housing Material / Color
ABS / Black
Adjustments
Voltage / F / C
Display Type
Numeric LED
Auto Turn-on
Yes, (Rem-In)
Remote Turn-on Input/Output
Yes
SPECS
Operating Voltage
10-15.9V
Frequency Response
10Hz-30KHz
Input Sensitivity
0.1-16V
Input Impedance
20K Ohms
Output Voltage
0.1-16V (Variable)
Output Impedance
20K Ohms
Temperature Sensor Range
0°~125°C / 32°~257°F
Sensor Cable Length
16ft / 5m
Measurements
Overall Width
3.26" / 83mm
Overall Height
1" / 27.5mm
Overall Depth
2.48" / 63mm
Body Width
2.32" / 59mm
Body Height
1" / 27.5mm
Body Depth
1.7" / 43mm
Flush Cut-Off Width
2.32" / 59mm
Flush Cut-Off Height
1" / 27mm
Flush Cut-Off Depth
0.5" / 13mm
