DS18

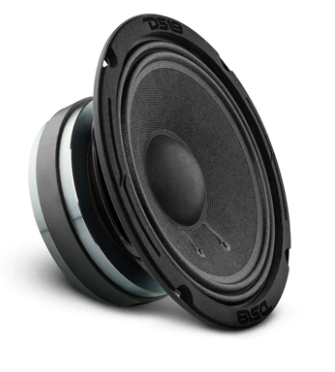

DS18 8PRO300MB 8" MidBass Loudspeaker 4 or 8 ohm
DS18 8PRO300MB 8" MidBass Loudspeaker 4 or 8 ohm
Regular price
$71.95
Regular price
Sale price
$71.95
Unit price
/
per
Shipping calculated at checkout.
SKU:8PRO300MB-8
Couldn't load pickup availability
8PRO300MB, 4 or 8 ohm, Sold individually
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 or 8 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 97 dB |
| Frequency Response | 60Hz-5KHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20oz |
| Displacement Volume | 0.48L / 0.016ft3 |
| MEASUREMENT | |
| Overall Diameter | 8.2" / 210mm |
| Overall Depth | 3.8" / 98mm |
| Front Mount Baffle Cutout | 7" / 178mm |
| Mounting Depth | 3.6" / 92mm |
| Motor Diameter | 4.5" / 115mm |
