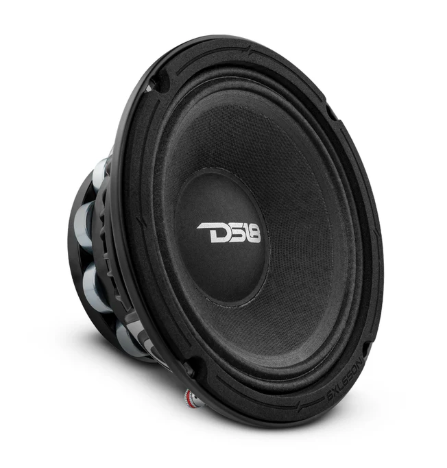

DS18 6XL650N-4 6.5" Neodymium Mid Range Loudspeaker

GENERAL SPECIFICATIONS

SKU
6XL650N-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
325Watts
MAX Power Handling
650 Watts
Sensitivity (1w/1m)
98.5dB
Frequency Response
60Hz-12.5KHz
Recommended Hi Pass Crossover
100Hz
Sold as Pair or Single
Single

MOTOR

Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Aluminum
Basket Color | Finish
Satin Black
Magnet Material
Neodymium
Magnet Weight
11.4 Oz
Displacement Volume
0.34L / 0.012ft3

THIELE & SMALL PARAMETERS

Vas
5.86L / 0.206ft3
Xmax
3.7 mm
Fs
100Hz
Qms
4.385
Qes
0.256
Qts
0.242
Mms
11.278
Cms
0.214 mm/N
BL
9.449
Le
0.1744 mH
Sd
136.85 cm²
Re
3.2 ohm
Mmd
11.278 g

MEASUREMENTS

Overall Diameter
6.7" / 170mm
Overall Depth
3.19" / 81mm
Front Mount Baffle Cutout
5.9" / 150mm
Mounting Depth
2.83" / 72mm
Motor Diameter
4.13" / 105 mm
