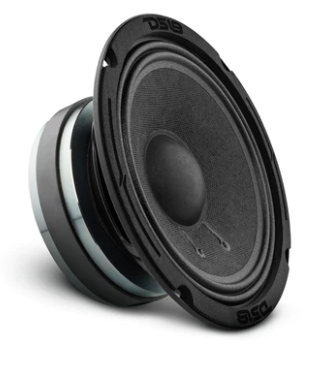

DS18 6PRO300MB 6.5" MidBass Loudspeaker 4 or 8 ohm
DS18 6PRO300MB 6.5" MidBass Loudspeaker 4 or 8 ohm
Regular price
$49.95
Regular price
Sale price
$49.95
Unit price
/
per
Shipping calculated at checkout.
SKU:6PRO300MB-4
Couldn't load pickup availability
6PRO300MB, 4 or 8 ohm, Sold individually
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 or 8 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 80Hz-6KHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20oz |
| Displacement Volume | 0.32L / 0.011ft3 |
| MEASUREMENT | |
| Overall Diameter | 6.5" / 166mm |
| Overall Depth | 3.1" / 79mm |
| Front Mount Baffle Cutout | 5.6" / 143mm |
| Mounting Depth | 2.8" / 73mm |
| Motor Diameter | 4.5" / 115mm |
