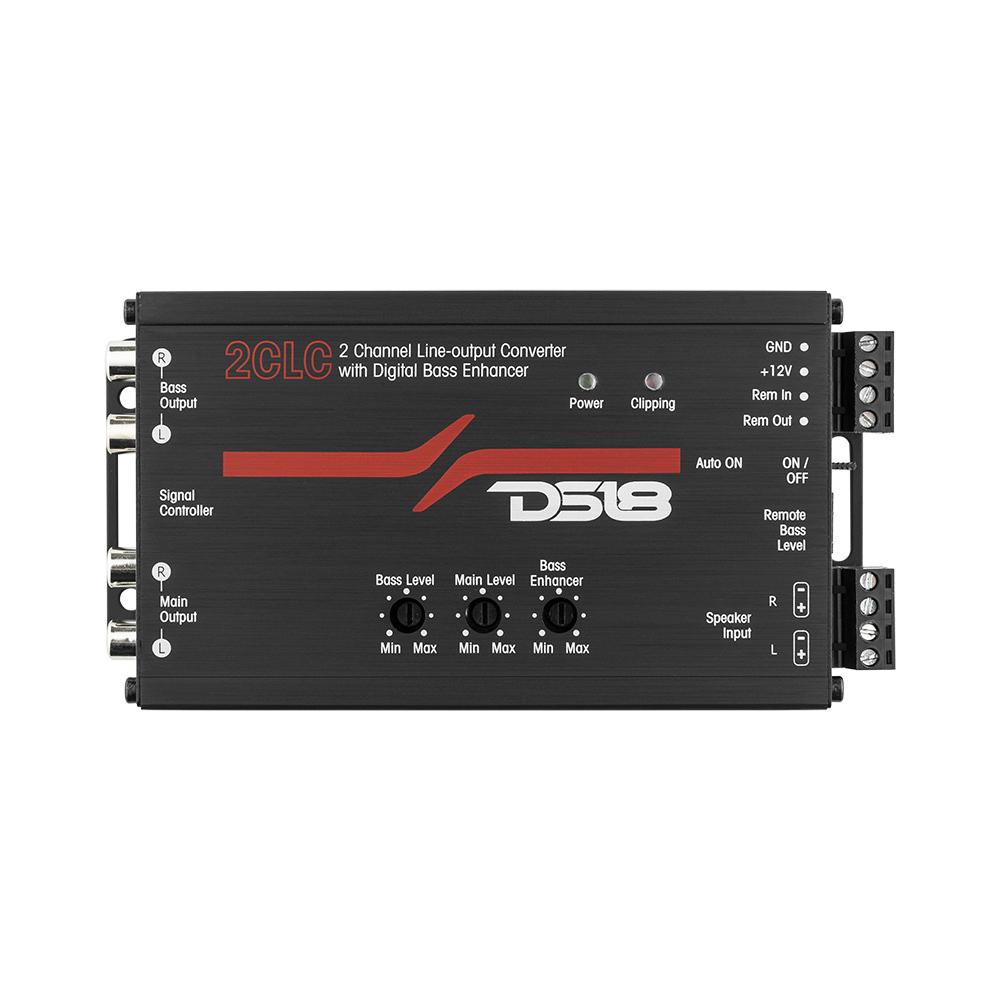

DS18 2CLC 2-Channel Line Output Converter with Digital Bass Enhancer
DS18 2CLC 2-Channel Line Output Converter with Digital Bass Enhancer
Regular price
$83.95
Regular price
Sale price
$83.95
Unit price
/
per
Shipping calculated at checkout.
SKU:2CLC
Couldn't load pickup availability
| Maximum Speaker Level Input | 400 watts per channel |
| Maximum Preamp Output | 9V rms |
| Dash Level Remote Control | +0db / - 19 dB |
| Frequency response | 10Hz-100kHz; + 1dB |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | 20K Ohms |
| Output Impedance | 150 Ohms |
| Power Draw | 150mA |
| Recommended Fuse Rating | 1 amp |
| Features | |
| Speaker Level Input | 2 channels |
| Bass Enhancer | with adjustable control of bass roll-off |
| Selectable Auto ON | Signal Sensing or remote in |
| Remote Output | Up to 150mA |
| Dual Amplifier Outputs | Main/ Bass output |
| Level Matching Controls | Main/ Bass output Level knob |

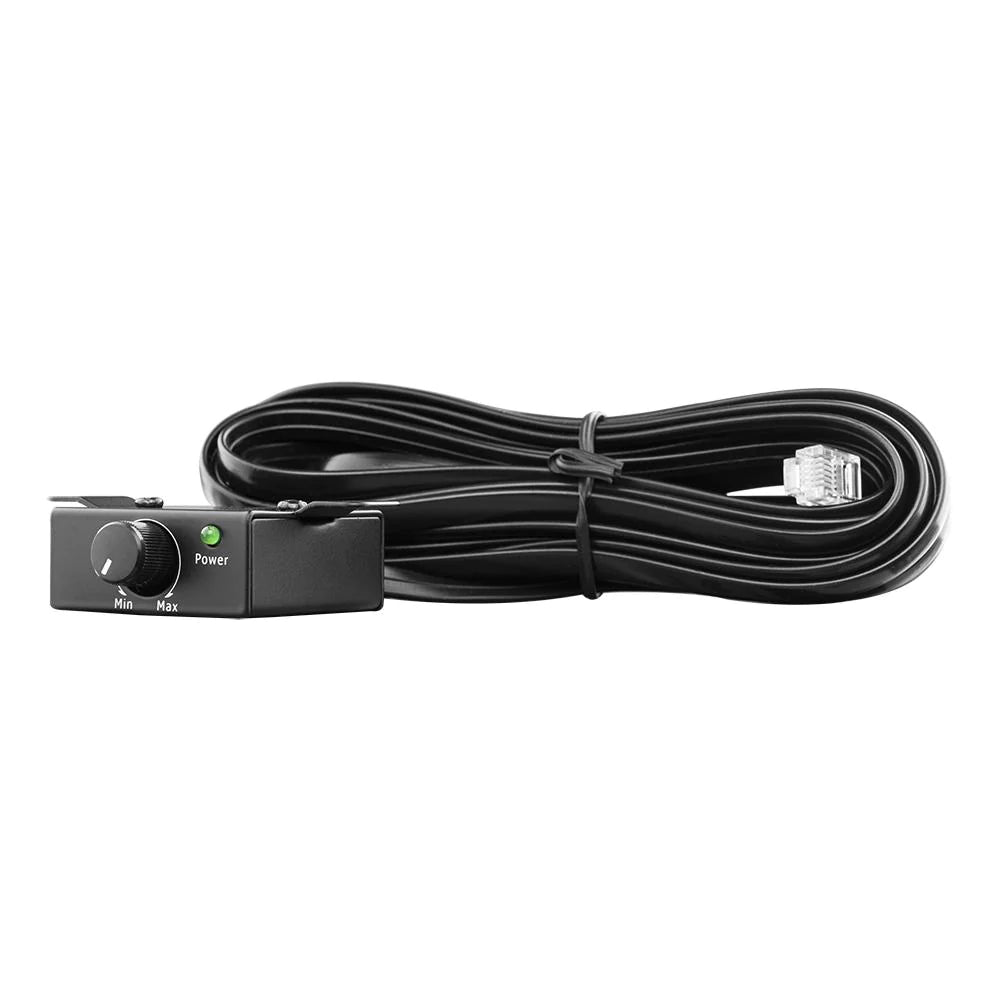

| Dash Remote Level Control | Included |
| LED Indicators | Power Clipping |
| Measurements | |
| Overall Lengh | 6.18" |
| Overall Wide | 3.22" |
| Overall Height | 1.25" |
| Heatsink Length | 539" |
| Gross Sible Unit Weight | 11oz |
