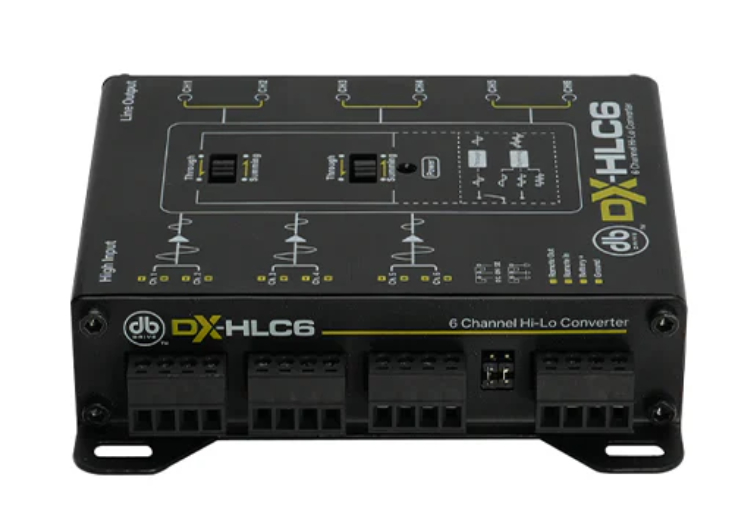

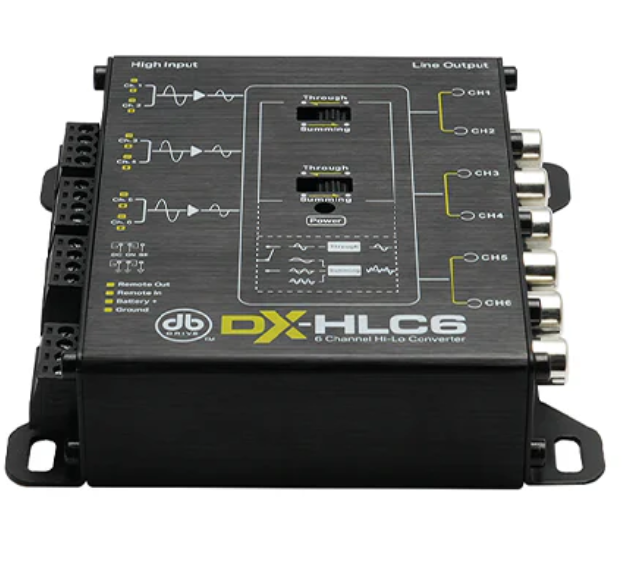

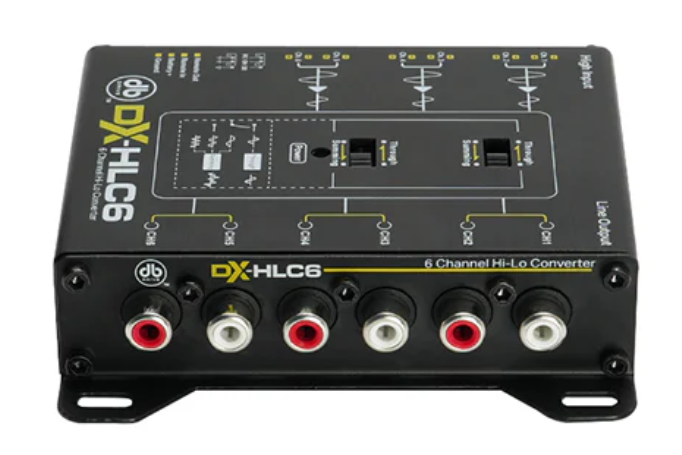

DBLink DX-HLC6 6 Channel High Low Converter with Summing

6 Channel Hi - Low Level Converter w Summing Capability

• 6 Channel speaker level inputs

• 6 - low level RCA output channels

• selectable summing input switches

• Signal Sensing remote turn on

• Variable level Matching output gains

• Built-in OEM load compatible

• 12 Volt -DC Remote Trigger Output

• Operating Voltage: 8-16V

• Current Draw: 100mA

• Input Impedance: 1 Ω

• Output Voltage: 8.5V

• Channel Separation: >65dB

• Output T.H.D.: 0.01%

• S/N: >100dB

• REM Output Current: 12V>100mA

• Frequency Response (+/-1dB): 10Hz-20KHz

• Input Sensitivity: 2-30V
