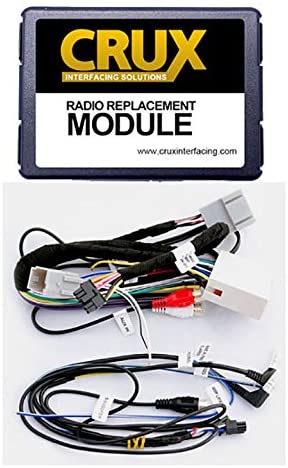

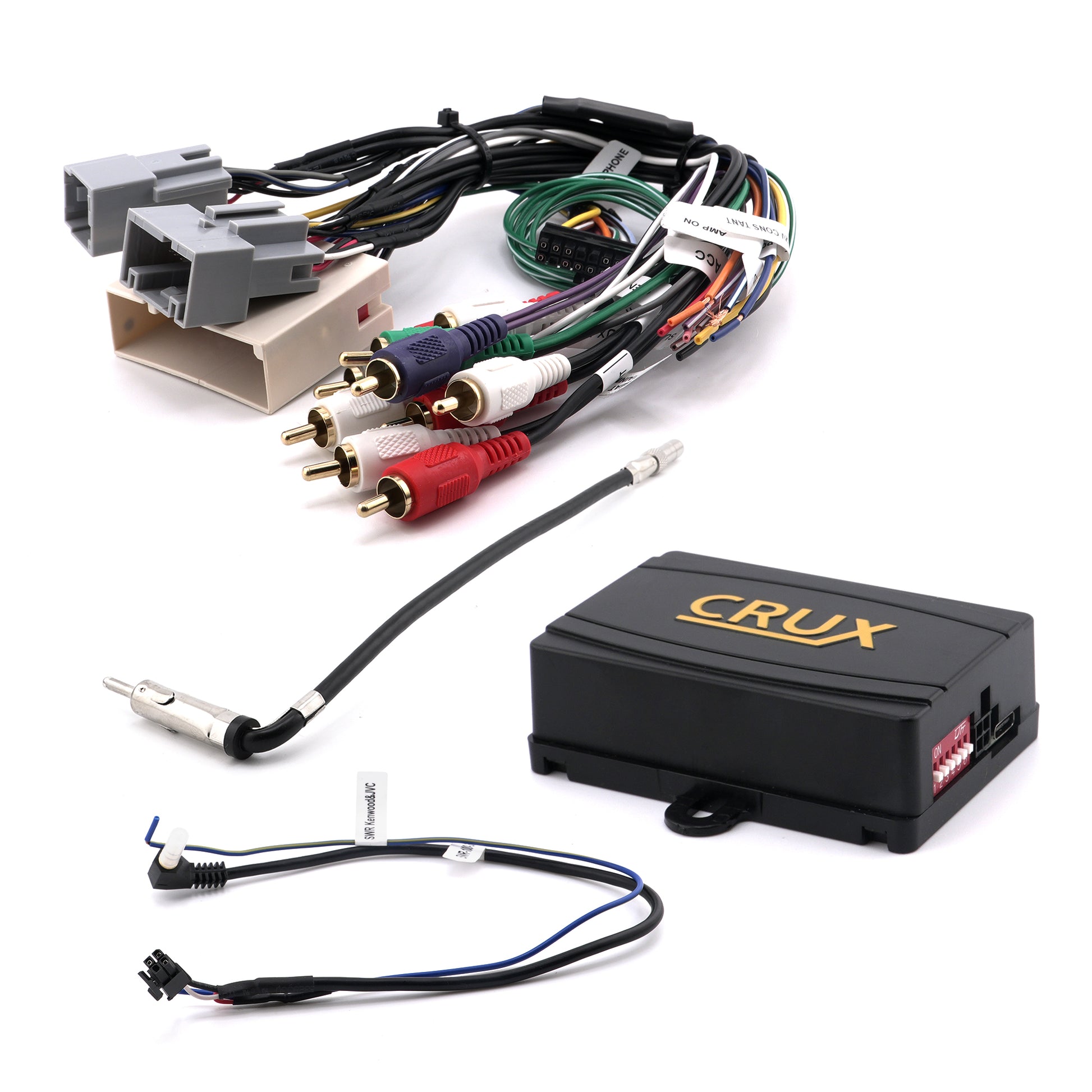

The CRUX SWRFD-60 is a radio replacement interface for select Ford, Lincoln & Mercury vehicles 2005-2014. It facilitates the integration of an aftermarket radio to retain factory features in select models. This enhanced interface is also pre-programmed for retention of steering wheel controls.

• Retains factory features with an aftermarket radio
• Retains factory-installed Subwoofer
• Retains Steering Wheel Controls via built-in, pre-programmed interface
• With navigation outputs (Reverse gear, Illumination and Speed signal)
• Provides Accessory Power (2A MAX)

*Note: Does not retain SYNC

FORD
2007 – 2010 Edge
2008 – 2012 Escape
2007 – 2014 Expedition
2006 – 2010 Explorer
2007 – 2010 Explorer Sport Trac
2009 – 2014 F-150
2008 – 2012 F-250
2008 – 2012 F-350
2008 – 2012 F-450
2005 – 2007 Five Hundred
2009 – 2012 Flex
2008 – 2011 Focus
2005 – 2007 Freestyle
2006 – 2012 Fusion
2005 – 2013 Mustang
2008 – 2012 Taurus

LINCOLN
2009 – 2012 MKS
2007 – 2010 MKX
2007 – 2012 MKZ
2007 – 2014 Navigator
2006 – 2006 Zephyr

MERCURY
2007 – 2011 Mariner
2006 – 2011 Milan
2005 – 2007 Montego
2006 – 2010 Mountaineer

MAZDA
2009 – 2011 Tribute

*Note: Does not retain SYNC

*Note: This kit provides both CAN and Analog modules. To determine which module you need please read the instructions on the manual (page 2) HOW TO DETERMINE IF THE VEHICLE HAS ANALOG SWC. If you determine that your vehicle is not analog then please connect the Can module

*Installation Note: Not compatible with factory installed Sony systems and THX systems w/ amplifier
