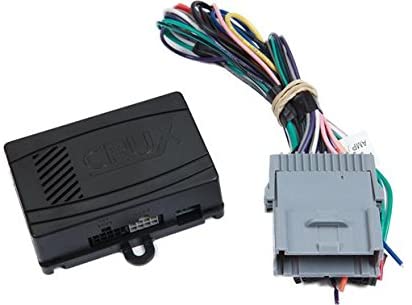

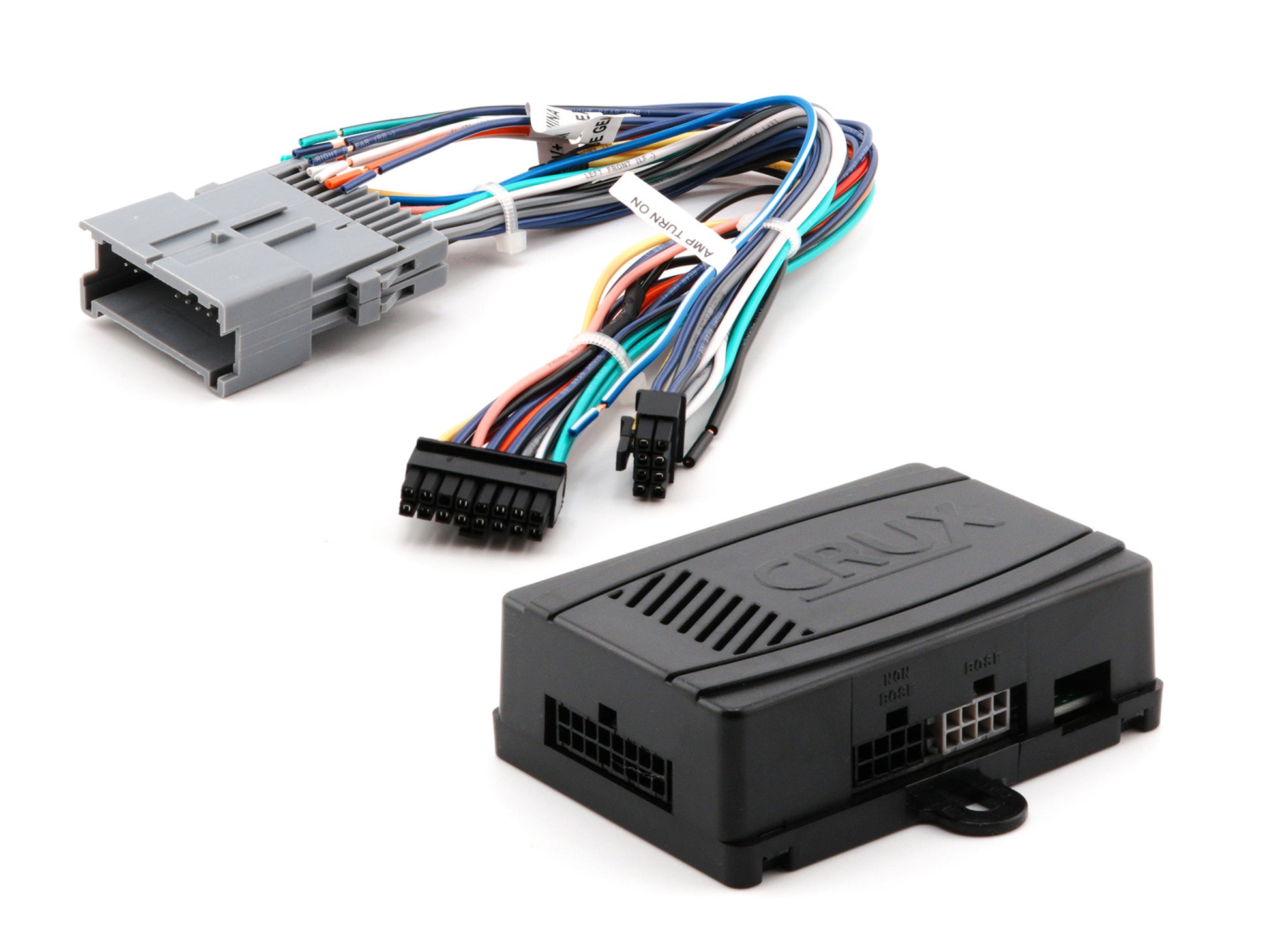

CRUX SOCGM-17C GM Radio Replacement Interface

• Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
• Supports Bose, Monsoon and Y-91 audio systems.
• Retains chime functions.
• Built-in chime volume adjustment
• EIA color coded wiring for easy installation.

For installation of after-market radios.

Note:

This product Does Not retain Onstar. Please select SONGM-11 to retain all factory features and OnStar

Buick
2004-05  Century
2005-07 LaCrosse
2004-07   Rainier
2003-05 Rendezvous
2005-07 Terrazza

Cadillac
2004-06   Escalade

Chevrolet
2003-06  Avalanche
2000-05  Cavalier
2004-13  Colorado
2005-13 Corvette*
2004-07  Express
2000-05  Impala
2000-05  Monte Carlo
2003-04 S-10
2003-06  Silverado
2007 Silverado Classic
2003-06 SSR
2003-06  Suburban
2003-06  Tahoe
2002-09  Trail Blazer
2005-08  Uplander
2003-05 Venture

GMC
2004-11  Canyon
2002-09  Envoy
2003-07  Savana
2003-06  Sierra
2007 Sierra Classic
2003-06  Yukon

Hummer
2003-07  H2
2005-09  H3

Isuzu
2003-08 Ascender

Oldsmobile
2001-04  Alero
2002-04  Bravada
2000-04 Silhouette

Pontiac
2001-05  Aztek
2001-05  Grand Am
2004-08 Grand Prix
2000-06 Montana
2000-05  Sunfire

Saab
2005-08 9-7x

Saturn
2005-07 Relay

NOTES:

• The Front and Rear fading are not retained on Y-91 Bose System.
• Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.

*There are instances in the Corvette when the chime will sound if either the “Traction Control” or the “DIC” (Driver Information Center) buttons are pressed. (See page 3 of Manual.)

• * Some Corvette needs verification by our tech support please provide the VIN of your vehicle
