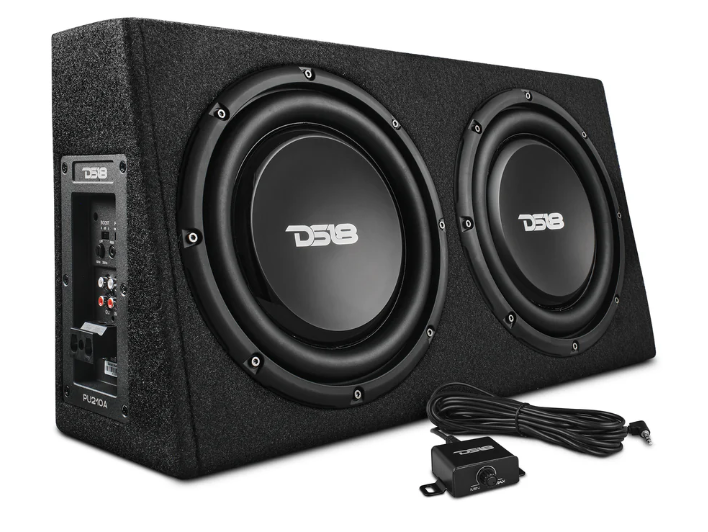

DS18 PU210A Amplified Loaded Box with 10" Subs (1 Active / 1 Passive)

Specifications

SKU
PU210A
Speaker Type / Size
10" Active + 10" Passive (261+261mm)
RMS Power Handling (14.4V)
350W
MAX Power Handling (14.4V)
700W
Sensitivity (1w/1m)
87dB
Frequency Response
30-250Hz

Measurement

Height
12" / 305mm
Width
23.5" / 595mm
Top Depth 1
4.25" / 108mm
Bottom Depth
7" / 176mm

Speaker Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
EISV
Cone Material
IPP
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
40 Oz

Amplifier Specifications

Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1CH
Minimum Impedance
2-ohms
Signal to Noise Ratio
75 dB
Efficiency @ 4ohm
75%
Total Harmonic Distortion (THD)
0.30%
Low Level Input Range
0.1-0.6V
High Level Input
Yes (Auto Turn-On)
Selectable X-Over
LPF Fixed
X-Over Filter Range
50-200Hz
Bass Boost Range
0-6 dB
Bass Boost Frequency
50Hz
Phase Selector
0-180?
LED Indicator
Power / Protection
Power Input Terminal Size
8Ga (Quick Connector)
Fuse Size
30A
Remote Level Control
Yes
Thermal Protection
Yes (75? / 167?F)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (<9v,>16v)
Signal Output (Pass-Through RCA)
Yes

Box Specifications

Internal Volume
16L / 0.56ft3
Load Configuration
Single 2-Ohms
Box Type
Sealed Box
Box Material
5/8" / 15mm MDF
Finish Material
Black Carpet
-3dB Dropping Point
45Hz
